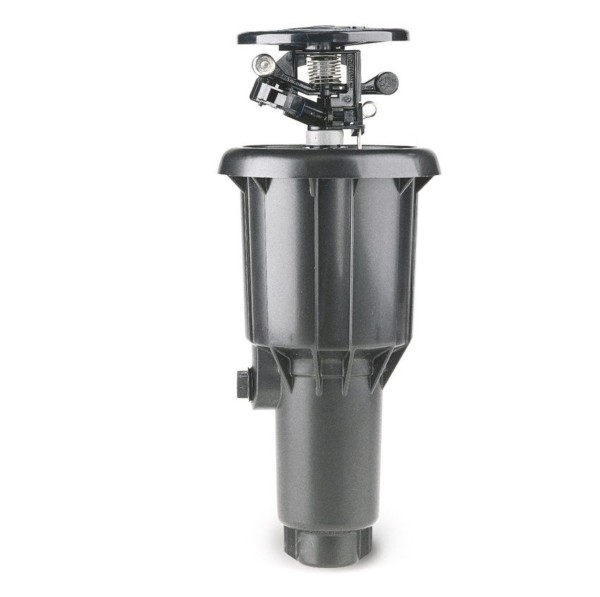

Rainbird MAXI‑PAW pop‑up Impact sprinkler. Code RB‑B0690008

SKU:RB-B0690008

Rainbird MAXI-PAW popup-impact sprinkler.

Features

  • Proven impact drive with straight-through flow for superior performance in dirty water.
  • Five standard trajectory and two low angle color-coded nozzles for matched precipitation in a wide range of applications
  • 360° Full-circle OR arc adjustable from 20° to 340°.
  • Side and combination 1/2″ or 3/4″ bottom inlet for design flexibility.
  • Easy to adjust, easy to service.
  • No tools required to change nozzles.
  • Heavy-duty plastic case with sturdy, reinforced ribbed design.
  • Double-weighted arm for slower rotation and increased distance of throw.
  • Self-flushing inner trip with improved inner trip lever.
  • Powerful reverse action.
  • Adjustable arm spring for low-pressure and low-gallonage operation.
  • Energy efficient, low pressure and low-gallonage operation.
  • Hooded bearing for longer life.
  • Distance control diffuser pin.
  • Multi-function, pressure-activated wiper seal.
  • Inlet filter screen and pressure-activated wiper seal protect internal assembly from debris to ensure positive pop-up and retraction.
  • Heavy-duty, stainless steel retract spring assures positive sprinkler pop-down.
  • Serviceable through the top of the case.
  • Optional internal Seal-A-Matic (SAM) prevents puddling and erosion caused by low head drainage and saves water.
  • Three-year trade warranty.

Specs

  • Precipitation Rate: 7 to 31 mm/h
  • Radius: 6,7 to 13,7 m
  • Radius with Radius Reduction Screw: 5,4 m
  • Pressure: 1,7 to 4,1 Bars
  • Flow: 0,34 to 1,91 m3/h; 0,9 to 0,53 l/s
  • Combination 1/2″ or 3/4″ BSP bottom inlet
    1/2″ BSP side inlet
  • Nozzles: 06-red; 07-black; 08-blue; 10-yellow; 12-beige
  • Low angle (LA) nozzles: 07 LA-black; 10 LA-yellow
  • Nozzle outlet trajectory is 23° for 06, 07, 08, 10, and 12 nozzles.
  • LA nozzle outlet trajectory is 11°.

Available Nozzles

  • Standard trajectory 06, 07, 08, 10, 12
  • Low Angle 07LA, 10LA

Dimensions

  • Overall height: 23,6 cm
  • Pop-up height: 7,6 cm
  • Exposed surface diameter: 12,7 cm

More info

Rainbird MAXI‑PAW pop‑up Impact sprinkler. Code RB‑B0690008

Rainbird MAXI-PAW popup-impact sprinkler.

Features

  • Proven impact drive with straight-through flow for superior performance in dirty water.
  • Five standard trajectory and two low angle color-coded nozzles for matched precipitation in a wide range of applications
  • 360° Full-circle OR arc adjustable from 20° to 340°.
  • Side and combination 1/2″ or 3/4″ bottom inlet for design flexibility.
  • Easy to adjust, easy to service.
  • No tools required to change nozzles.
  • Heavy-duty plastic case with sturdy, reinforced ribbed design.
  • Double-weighted arm for slower rotation and increased distance of throw.
  • Self-flushing inner trip with improved inner trip lever.
  • Powerful reverse action.
  • Adjustable arm spring for low-pressure and low-gallonage operation.
  • Energy efficient, low pressure and low-gallonage operation.
  • Hooded bearing for longer life.
  • Distance control diffuser pin.
  • Multi-function, pressure-activated wiper seal.
  • Inlet filter screen and pressure-activated wiper seal protect internal assembly from debris to ensure positive pop-up and retraction.
  • Heavy-duty, stainless steel retract spring assures positive sprinkler pop-down.
  • Serviceable through the top of the case.
  • Optional internal Seal-A-Matic (SAM) prevents puddling and erosion caused by low head drainage and saves water.
  • Three-year trade warranty.

Specs

  • Precipitation Rate: 7 to 31 mm/h
  • Radius: 6,7 to 13,7 m
  • Radius with Radius Reduction Screw: 5,4 m
  • Pressure: 1,7 to 4,1 Bars
  • Flow: 0,34 to 1,91 m3/h; 0,9 to 0,53 l/s
  • Combination 1/2″ or 3/4″ BSP bottom inlet
    1/2″ BSP side inlet
  • Nozzles: 06-red; 07-black; 08-blue; 10-yellow; 12-beige
  • Low angle (LA) nozzles: 07 LA-black; 10 LA-yellow
  • Nozzle outlet trajectory is 23° for 06, 07, 08, 10, and 12 nozzles.
  • LA nozzle outlet trajectory is 11°.

Available Nozzles

  • Standard trajectory 06, 07, 08, 10, 12
  • Low Angle 07LA, 10LA

Dimensions

  • Overall height: 23,6 cm
  • Pop-up height: 7,6 cm
  • Exposed surface diameter: 12,7 cm

More info

Rainbird MAXI‑PAW pop‑up Impact sprinkler. Code RB‑B0690008

Ex VAT:£52.89Incl VAT:£63.47

Rainbird MAXI-PAW popup-impact sprinkler.

Features

  • Proven impact drive with straight-through flow for superior performance in dirty water.
  • Five standard trajectory and two low angle color-coded nozzles for matched precipitation in a wide range of applications
  • 360° Full-circle OR arc adjustable from 20° to 340°.
  • Side and combination 1/2″ or 3/4″ bottom inlet for design flexibility.
  • Easy to adjust, easy to service.
  • No tools required to change nozzles.
  • Heavy-duty plastic case with sturdy, reinforced ribbed design.
  • Double-weighted arm for slower rotation and increased distance of throw.
  • Self-flushing inner trip with improved inner trip lever.
  • Powerful reverse action.
  • Adjustable arm spring for low-pressure and low-gallonage operation.
  • Energy efficient, low pressure and low-gallonage operation.
  • Hooded bearing for longer life.
  • Distance control diffuser pin.
  • Multi-function, pressure-activated wiper seal.
  • Inlet filter screen and pressure-activated wiper seal protect internal assembly from debris to ensure positive pop-up and retraction.
  • Heavy-duty, stainless steel retract spring assures positive sprinkler pop-down.
  • Serviceable through the top of the case.
  • Optional internal Seal-A-Matic (SAM) prevents puddling and erosion caused by low head drainage and saves water.
  • Three-year trade warranty.

Specs

  • Precipitation Rate: 7 to 31 mm/h
  • Radius: 6,7 to 13,7 m
  • Radius with Radius Reduction Screw: 5,4 m
  • Pressure: 1,7 to 4,1 Bars
  • Flow: 0,34 to 1,91 m3/h; 0,9 to 0,53 l/s
  • Combination 1/2″ or 3/4″ BSP bottom inlet
    1/2″ BSP side inlet
  • Nozzles: 06-red; 07-black; 08-blue; 10-yellow; 12-beige
  • Low angle (LA) nozzles: 07 LA-black; 10 LA-yellow
  • Nozzle outlet trajectory is 23° for 06, 07, 08, 10, and 12 nozzles.
  • LA nozzle outlet trajectory is 11°.

Available Nozzles

  • Standard trajectory 06, 07, 08, 10, 12
  • Low Angle 07LA, 10LA

Dimensions

  • Overall height: 23,6 cm
  • Pop-up height: 7,6 cm
  • Exposed surface diameter: 12,7 cm

Trade Enquires

Our website makes it convenient to order small quantities of our products. If you require larger quantities or advice from our experts you can get in touch to speak to one of our representatives.

Get In Touch

Description

2045A Maxi-Paw

Pop-Up Impact Sprinklers for Dirty Water Applications – Spacing Up to 13.7 metres

The Maxi-Paw’s powerful throw permits maximum spacing and offers superior close-in watering and uniform water distribution. Low pressure loss and an efficient, straight-through flow design conserve energy and are ideal for dirty water applications.

The optional Seal-A-Matic™ prevents run-off, puddling, and erosion caused by low head drainage. And most important, it’s rugged and dependable, popping up on schedule again and again because of the multi-function wiper seal.
