Description
Features
- Cuts emitter installation time

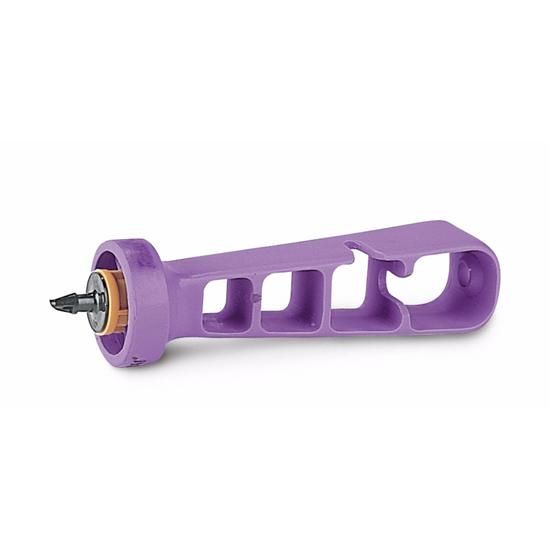

- All-in-one tool inserts emitters, removes emitters, inserts 1⁄4″ barbed fittings, and installs goof plugs
Specs
Model
- XM-TOOL
Using the Emitter Tool:

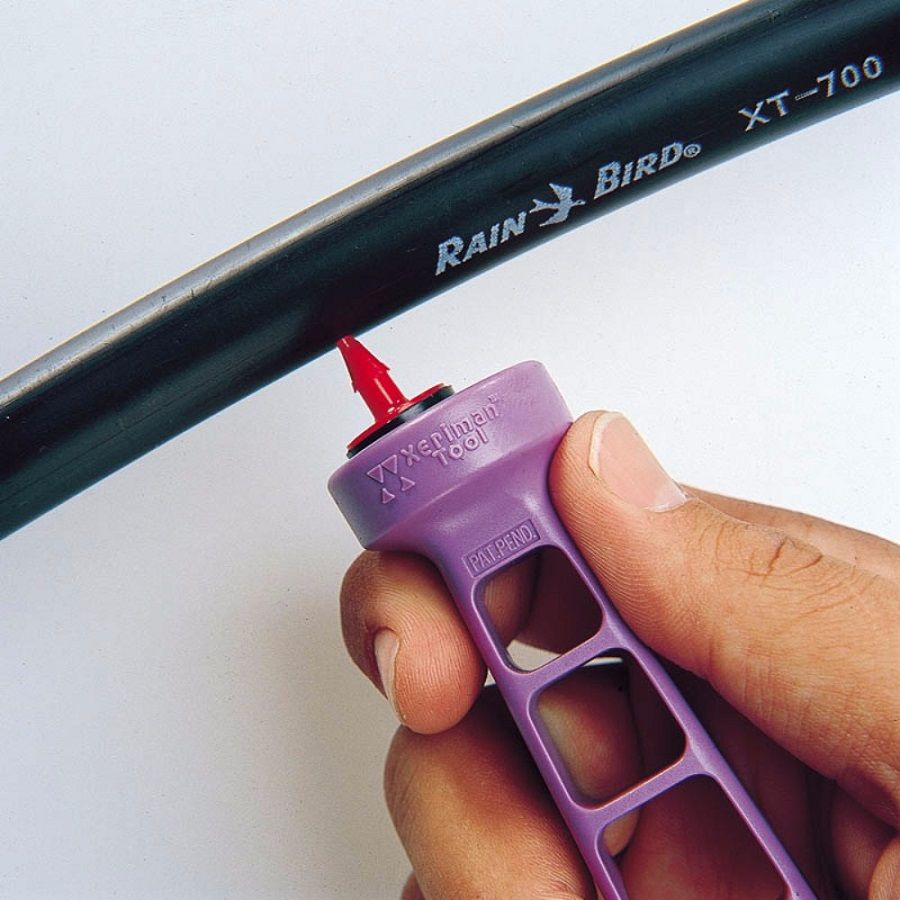

Step 1: Place the Xeri-Bug Emitter on end of tool. Press barbed point into side wall of ½” Tubing.

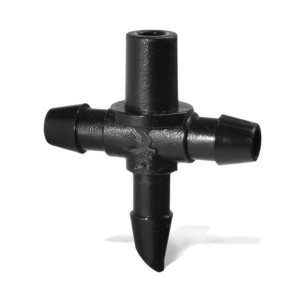

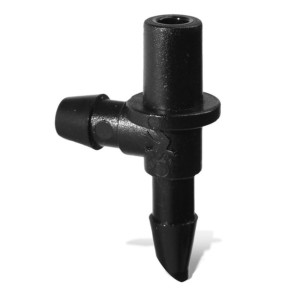

Note: The Emitter Tool also works with ¼” Barbed Couplings and with ¼” Barbed Tees.

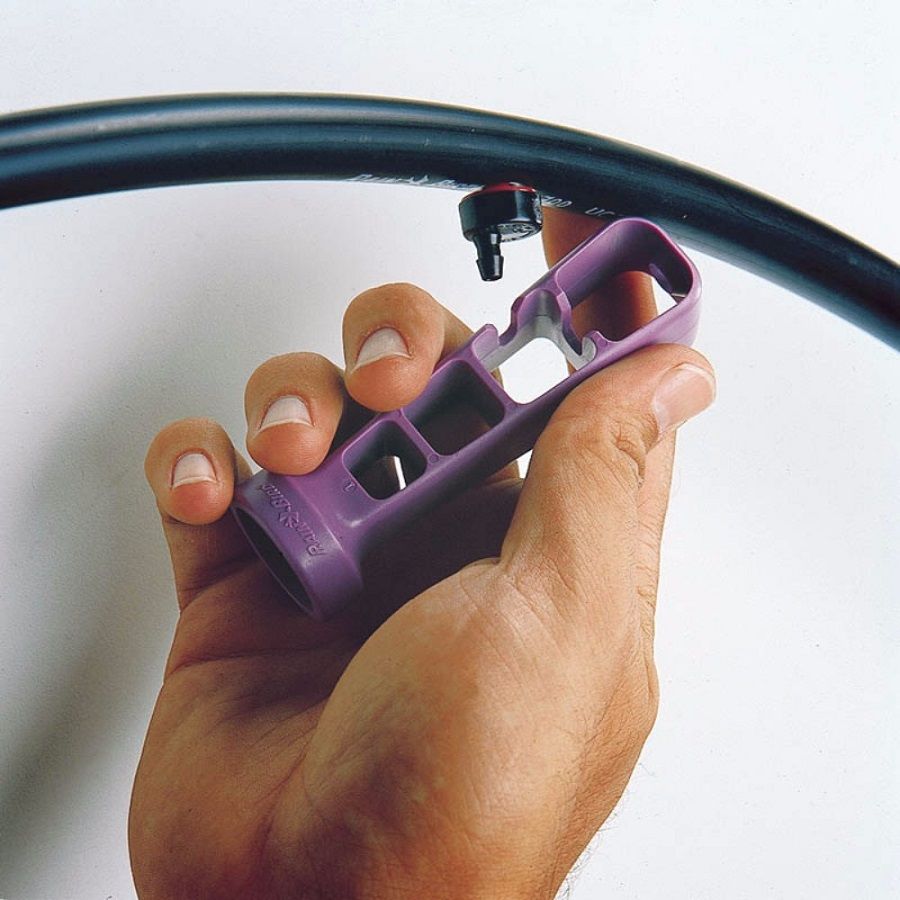

Step 2: Pull tool away, leaving the Xeri-Bug Emitter embedded in tubing
Step 3: Push ¼” tubing onto the Xeri-Bug Emitter.

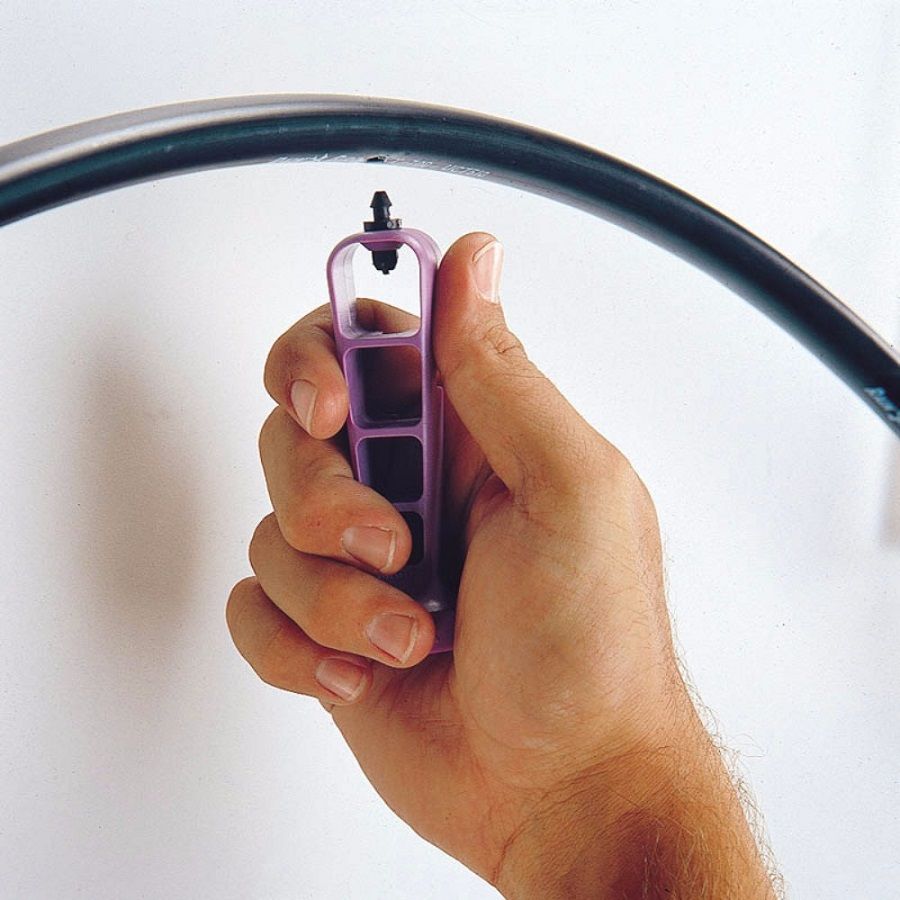

Step 4: To remove Xeri-Bug Emitters, use side of tool.
Step 5: ¼” Tubing Plugs can be used to seal holes in ½” tubing. Use bottom of Emitter Tool to insert these plugs.
