Description

This is the Brown dripline that many irrigation contractors prefer to use. Drippers are 33 cm apart, each dripper has a flow rate of 2.3 litres per hour.

Dripline is a product that is used all over the world. In horticulture it is used for irrigating vineyards, tree crops and vegetable production. In landscaping it is installed to irrigate garden beds. It is very effective and non-disruptive.

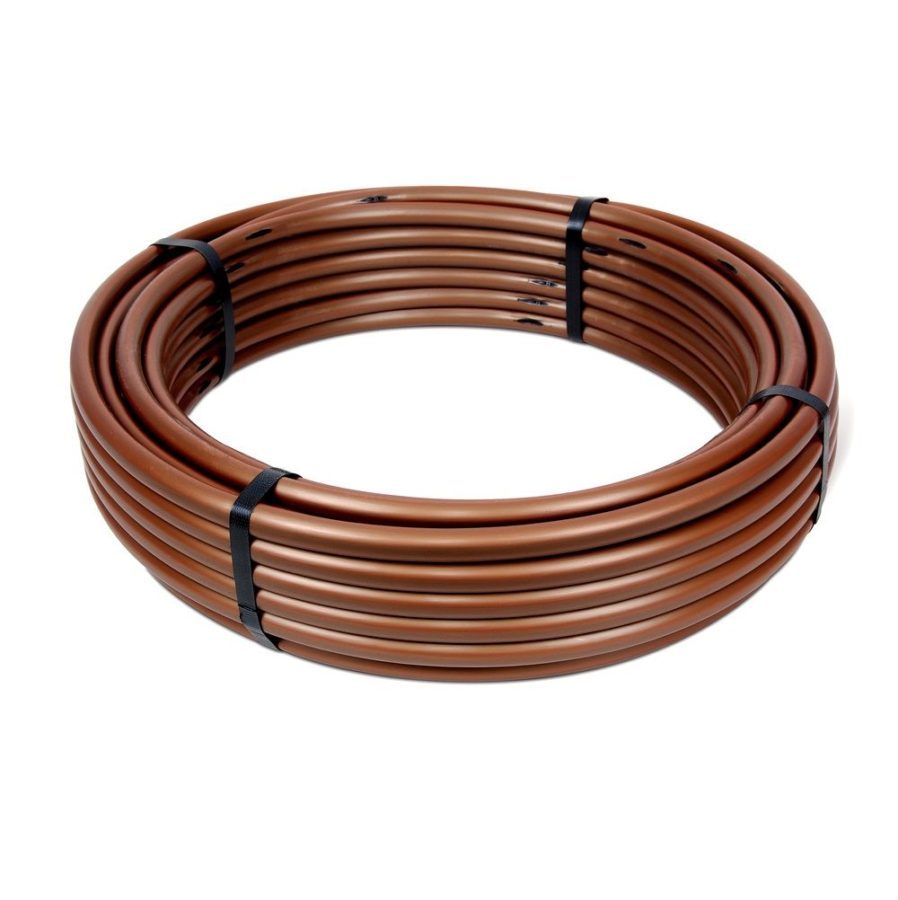

Dripline comes in a coil and looks like normal (brown) poly tube. If you look closely though you’ll see a “knuckle” extruded inside the tube every 30cm, and a tiny hole about a millimetre across. The knuckle is a pressure-compensating labyrinth and the tiny hole is where the water emerges from.

Our Rain Bird dripline is pressure compensating (PC), meaning that every drip emitter down the coil will only emit exactly the specified amount of water (2.3 litres per hour for this model), regardless of the pressure inside the pipe, or whether it’s at the start of the coil or at the far end, which could be as much as 100 metres away!
