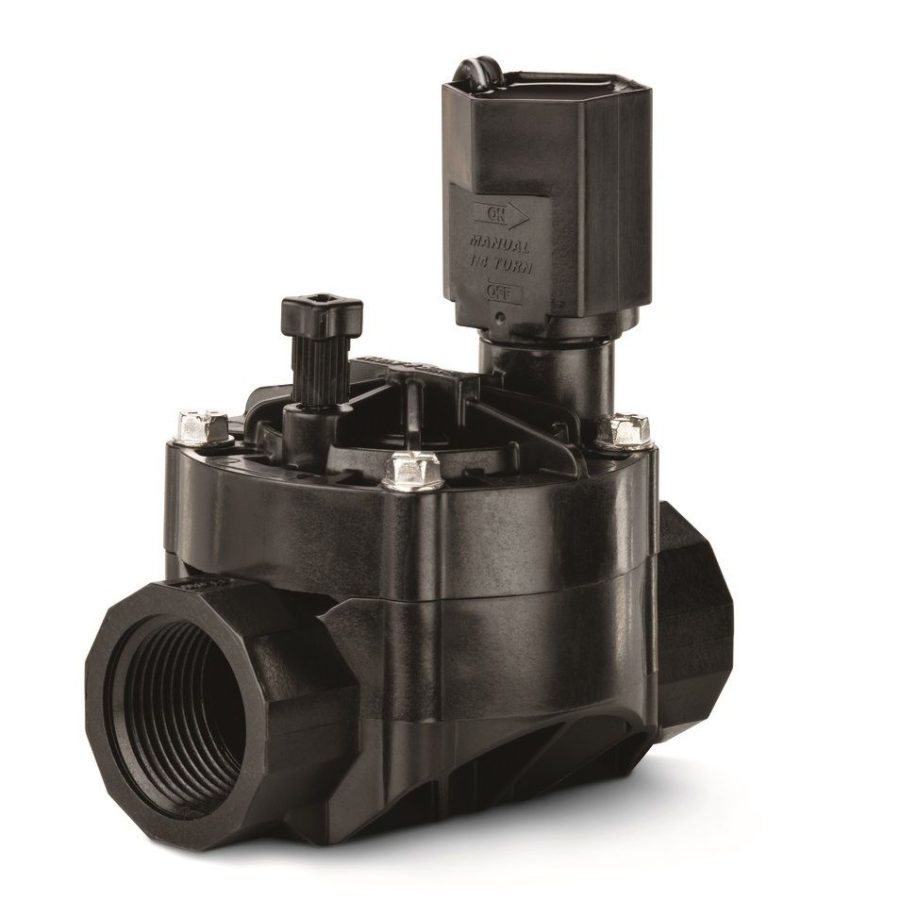

Rainbird 100HV 1″ solenoid valve, 24vac. Code RB‑H01000

Rainbird 1″ HV solenoid valve 24vac.

Reliability:

• Eccentric diaphragm for smooth closing, less water hammer
• Glass-filled polypropylene body for strength
• Reverse flow normally closed design
• Single-filtered pilot flow for maximum reliability
• Trouble-free service with few parts
• Buna-N diaphragm with self-cleaning 90-mesh (200 micron) pilot water filter and stainless steel spring

Versatility

• Compact design, 2.54” spin radius for tight installations
• Operates in low-flow and Landscape Drip applications when a 200 mesh filter is installed upstream
• Available in multiple fitting types
• External bleed to manually flush system of dirt and debris during installation and system startup
• Internal bleed for spray-free manual operation
• Unique, easy-to-turn, pressure-assisted flow control mechanism option available (HVF models only)

Ease of Service

• Captive multi-drive screws for ease of access
• Your choice of tools to open valve (nut driver, Phillips head screwdriver, slotted head screwdriver)
• Four screws for quick access to diaphragm
• Diaphragm locating post for positive installation

More info

Rainbird 100HV 1″ solenoid valve, 24vac. Code RB‑H01000

Ex VAT:£24.32Incl VAT:£29.18
